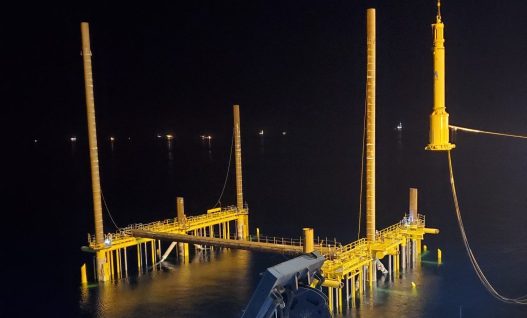

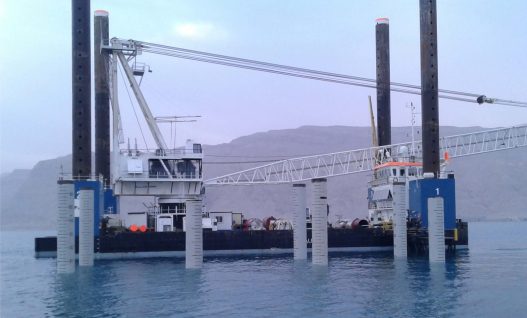

GRL Engineers has helped achieve successful pile installation for offshore platforms and wind farms in fields throughout the world. This expertise translates seamlessly to the installation of offshore wind farms supported by driven piles.

GRL generally starts with a pile drivability study. Using the Offshore Wave version of the wave equation analysis of piles software program GRLWEAP, GRL evaluates if the proposed hammer and cushion system is suitable for the project and anticipates installation conditions that may require special precautions.

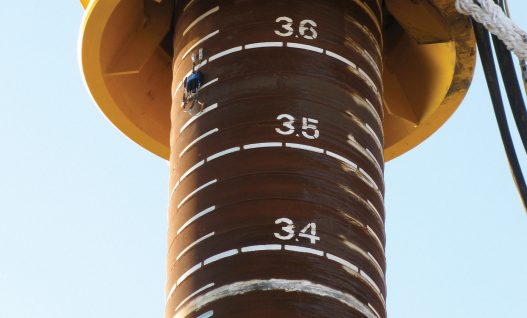

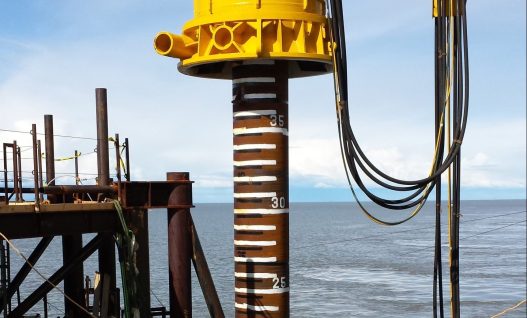

Once pile driving starts, GRL monitors driving stresses and the actual efficiency of the hammer (energy transferred to the pile) with a Pile Driving Analyzer® (PDA) system. GRL may also provide equipment and expertise to assess hammer performance (stroke, potential and kinetic energy), an important concern on an offshore platform. Pile driving monitoring requires strain transducers and accelerometers attached to the pile to supply the data required for analysis with a PDA. If necessary, special underwater strain transducers and accelerometers are used for offshore platform foundations.

Immediately following pile driving GRL uses the measurements collected during pile monitoring to complete the dynamic load test by performing CAPWAP® analyses. This provides an assessment of shaft resistance and end bearing at the time of testing. GRL often repeats the dynamic load tests during a pile re-strike. To ensure continuity of offshore operations GRL provides backup equipment and personnel to the site.

Most GRL Engineers have achieved Advanced level or higher on the PDCA/PDI Dynamic Measurement and Analysis Proficiency Test.

Calculator

Enter the capacity you wish to mobilize, in Tons:

What type of test do you wish to perform?

What is your bearing strata?


Find out which APPLEs meet your needs, then contact the GRL office that serves your project location to discuss your specific project requirements.

Standard GRL-Cell Details*

GRL-Cell Capacity (tons) Maximum Test Load (tons) Outside Diameter (inches) Maximum Stroke (inches)
350 750 12 9
750 1500 16 9
1100 2200 21 9
1500 3000 23 9
2000 4000 28 9

*GRL-Cell sizes are subject to change.
